Ekual Tech

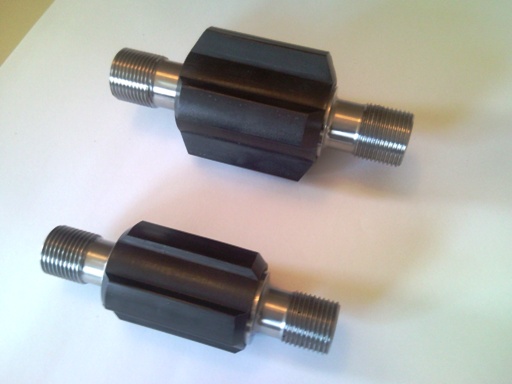

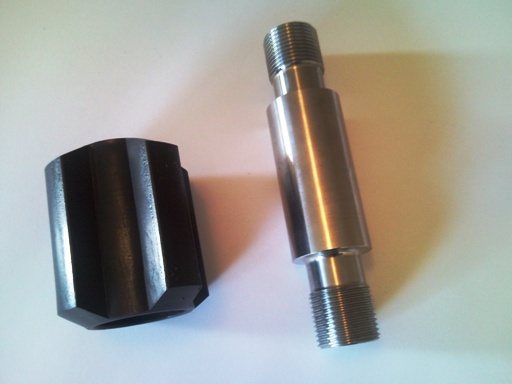

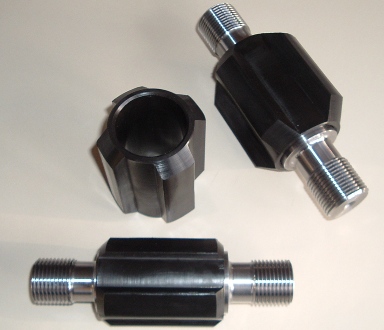

produces a complete range of non-rotating centralizers for sucker-rods
to reduce the wear of tubing and rods.
Main Features and Benefits:
- Reduces the tubing and rods wear
- Prevents rod coupling wear
- Easy installation
- Provides a good stabilization of the rod string
- Reduces torque in deviated wells
- Sleeves tapered to allow easy rod pass
- Improves lifetime and reduces the service demand
- Easy replacement of the worn sleeves
Material Specification:

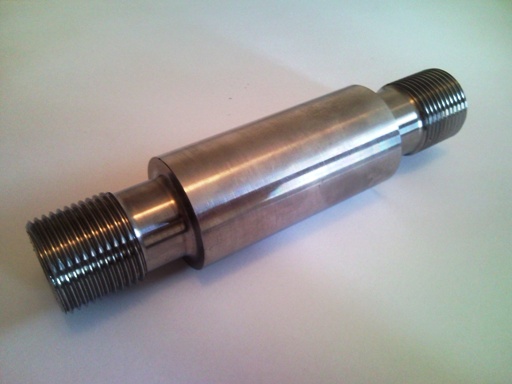

- Shaft: 4140 Heat Treated and Stress Relieved
- Sleeve: standard - Nylon 6, or other material available (CL200-001)
- Max. Operating Temperature: 104oC (Nylon 6)
Main Features and Benefits:
- Reduces the tubing and rods wear
- Prevents rod coupling wear
- Easy installation
- Provides a good stabilization of the rod string
- Reduces torque in deviated wells
- Sleeves tapered to allow easy rod pass
- Improves lifetime and reduces the service demand
- Easy replacement of the worn sleeves
Material Specification:
- Shaft: 4140 Heat Treated and Stress Relieved
- Sleeve: standard - Nylon 6, or other material available (CL200-001)
- Max. Operating Temperature: 104oC (Nylon 6)
